S-24, SN-24

S-24, 12’ x 14’, White doorsS-24, 12’ x 14’, White doors

  • Steel
  • Thickness: 2"
  • Color: White
  • 2 layers (polystyrene + vinyl backing (R-7.2) OR Non‑Insulated​
  • Panel design: Deep Grooves​

IMPORTANT - The model SN-24 is not available in Canada for now.

Important - Product names

  • The S‑24 and SN‑24 garage door models are part of the Mid‑America series.

Garaga - Mid-America Series

Features and benefits

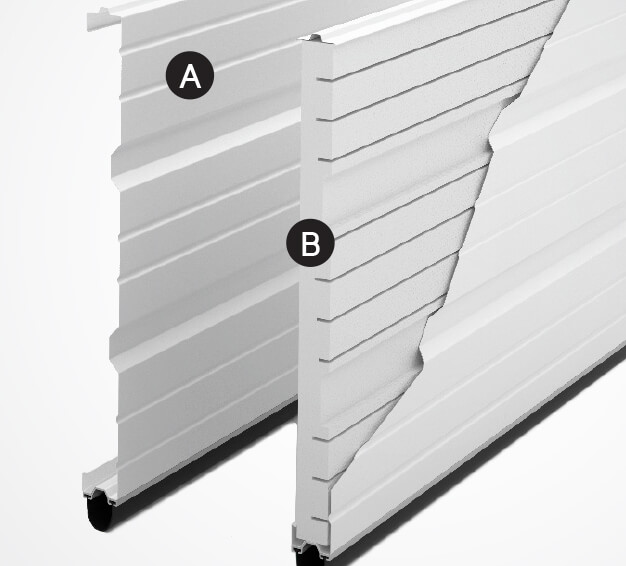

Deep-grooved steel wall and optional polystyrene insulation drawing

A

Deep-grooved steel wall

  • Providing more strength and additional bending resistance, our sections are made with ½" deep and 2" wide horizontal grooves with alternating smaller grooves.

B

Optional polystyrene insulation

  • For energy savings, polystyrene insulation protected with a vinyl backing is available.

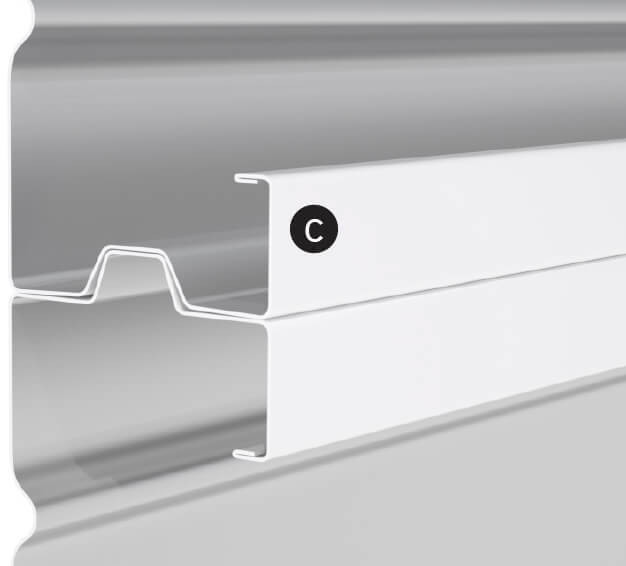

Section profile drawing

C

Section profile

  • Rails are hemmed the entire length of the section for added sturdiness and dependability.

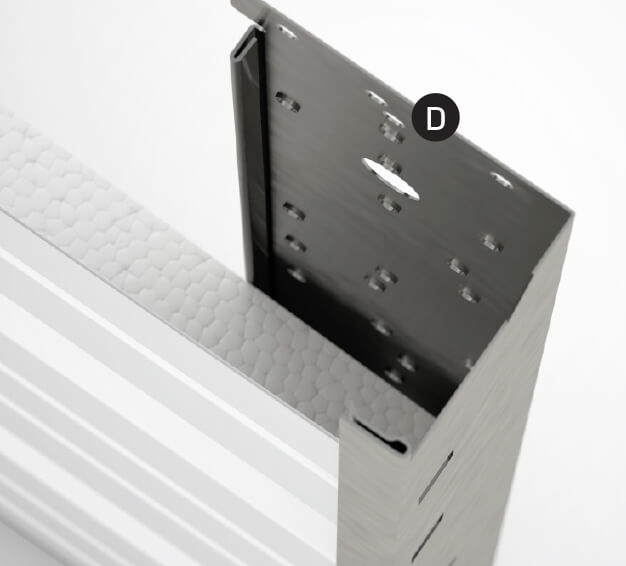

Center and end stiles drawing

D

Center and end stiles

  • With a fully hemmed edge for added strength and safety, all stiles are pre‑punched with extruded holes for secure attachment of hinges and hardware components.
Man Technical Support

Our technical department

We can provide budgetary pricing for your projects and your customers’ ones.

Our technical department

We can provide budgetary pricing for your projects and your customers’ ones.

Panel construction

S-24, SN-24 and S-24C panel construction

1

Hot-dipped galvanized steel wall

  • Baked-on polyester paint. Can be repainted
  • Corrosion resistant
  S-24 SN-24
Exterior steel skin

24-gauge

25-gauge

Exterior side finish

Smooth

Smooth

S-24

Exterior steel skin

24-gauge

Exterior side finish

Smooth

SN-24

Exterior steel skin

25-gauge

Exterior side finish

Smooth

2

2” (50 mm) door

  • Optional CFC-free polystyrene insulation covered with a vinyl backing ensuring a thermal-resistance rating of R-7.2 (RSI 1.0 or k=1.000 W/m2K) for S-24 and SN-24.

3

Sections are made with ½” (13 mm) deep and 2” (50 mm) wide grooves providing more strength to the door.

4

Tongue & groove joints between sections that fit seamlessly.

5

Bottom weatherstripping

S-24 and SN-24: continuous astragal made of U-shaped flexible vinyl and held in place by an aluminum retainer for the S‑24 door and by a vinyl retainer for the SN‑24 door.

6

Vertical center stiles

S-24 and SN-24: 18-gauge galvanized steel provides a rock solid base and the pre-punched holes help to affix hinges and struts. One edge is hemmed to add more strength to the section.

Door weight:

  S-24 SN-24
Insulated

1.59 lb/ft2

(7.8 kg/m2)

1.50 lb/ft2

(7.3 kg/m2)

Non-insulated

1.44 lb/ft2

(7.0 kg/m2)

1.34 lb/ft2

(6.5 kg/m2)

S-24

Insulated

1.59 lb/ft2

(7.8 kg/m2)

Non-insulated

1.44 lb/ft2

(7.0 kg/m2)

SN-24

Insulated

1.50 lb/ft2

(7.3 kg/m2)

Non-insulated

1.34 lb/ft2

(6.5 kg/m2)

Panel design

S-24, SN-24, S-24C layout

Deep Grooves
1⁄2” deep, 2” wide

Sizes

  S-24 SN-24
Widths

In 1" (25 mm) increments

From 5' to 30'2"

(1.2 m to 9.2 m)

From 5' to 20'2"

(1.2 m to 6.1 m)

Heights

In 3" (76 mm) increments

From 6' to 22'

(1.8 m to 6.7 m)

From 6' to 14'

(1.8 m to 4.3 m)

Sizes

S-24

Widths

In 1" (25 mm) increments

From 4' to 30'2"

(1.2 m to 9.2 m)

Heights

In 3" (76 mm) increments

From 6' to 22'

(1.8 m to 6.7 m)

SN-24

Widths

In 1" (25 mm) increments

From 4' to 20'2"

(1.2 m to 6.1 m)

Heights

In 3" (76 mm) increments

From 6' to 14'

(1.8 m to 4.3 m)

Warranty (Limited)

1 year against structural failures

Colors

S-24 and SN-24

White

White

The accuracy of colors on the website may vary depending on your screen settings. To see the true colors, please contact your local Garaga dealer for a sample.

Windows

S-24 and SN-24 Standard windows​

S-24 and SN-24 Standard windows

Sizes

24" x 6" (610 mm x 152 mm) or

25" x 13" (635 mm x 330 mm)

Glass

  • Single glass 1⁄8": Clear

Frame colors

White and Black

S-24 | SN-24

Hardware

See details with your Garaga dealer.
